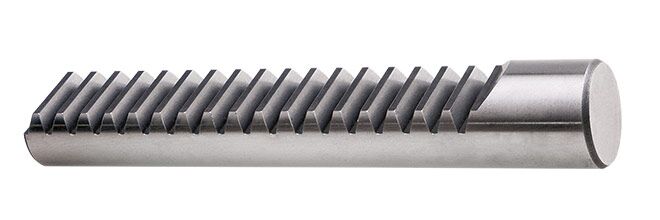

Gear rack

Gear rack

Milled and flank-ground

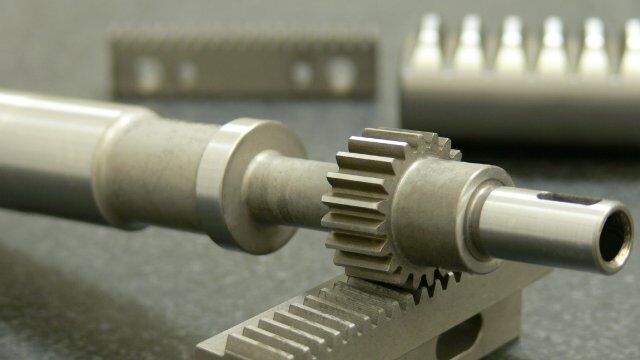

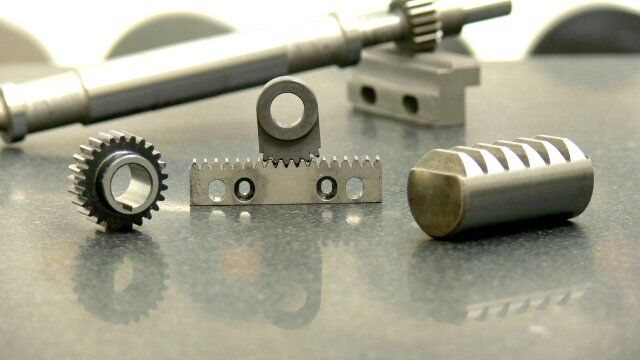

A gear rack is an important machine element whenever rotary movements need to be translated into linear movements (and vice versa). Racks are basically spur gears with involute toothing, but possess an infinitely large base circle. This is why the involute in gear racks becomes a trapezoid profile. The profile is also used as a reference for spur gears.

We produce gear racks in milled and flank-ground versions, based on your specifications. We are not subject to any restrictions here and can produce gear racks of any length.

  Module Ground tooth flanks
Gear rack 0,8 -14 up to quality 5
