FS2 HW | HWK | HWZ | HWS

Servo bevel gearbox with flange and hollow shaft

TANDLER description: ServoFoxx® spiral bevel gearbox series FS2 HW | HWS | HWK | HWZ

Servo bevel gearbox with flange and hollow shaft

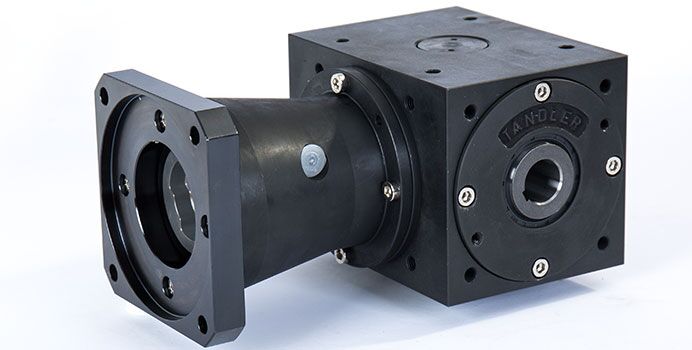

Our servo bevel gearboxes FS2 HW | HWK | HWZ | HWS correspond to the ServoFoxx® FS2 gearboxes, but are equipped with various hollow shaft designs. You have the choice between hardened hollow shafts with keyway, various inner profiles or as HWS with shrink disk for backlash-free torque transmission.

Servo bevel gearbox with hollow shaft

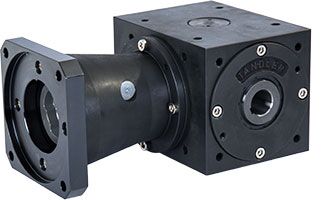

HW - Keyway

Servo bevel gearbox with hollow shaft and straight sided, splined bore

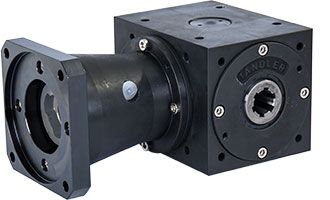

HWK - Straight sided, splined bore

Servo bevel gearbox with hollow shaft and Internal involute spline

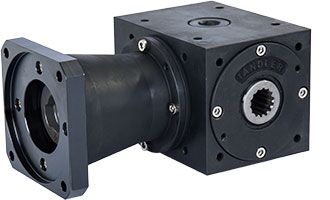

HWZ - Internal involute spline

Servo bevel gearbox with hollow shaft and shrink disc

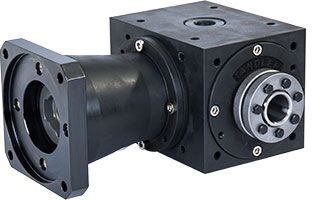

HWS - Shrink disc

Hollow shaft options

Technical data

SERVO BEVEL GEARBOX FS2 HW
Gearbox size 8 gearbox sizes available
Ratios

1:1 - 1,25:1 - 1,5:1 - 1,75:1 2:1 - 2,5:1 3:1 - 3,5:1 4:1 - 5:1 - 6:1

Alternative ratios on request

Max. torque Up to 2.836 Nm
Max. speed Up to 3.000 min-1 Higher speeds on request
Backlash ≤ 6'
Reduced backlash ≤ 3'
Bore diameter hollow shaft From 12 to 65mm depending on the gearbox size
Motor shaft diameter From 8 to 60mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

Also available with input shaft and other ratios, see spiral bevel gearbox catalogue (see hollow shaft variants).
