Servo bevel gearbox with flange standard version FS2

TANDLER description: ServoFoxx® spiral bevel gearbox series FS2

Servo bevel gearbox with flange standard version

This servo bevel gearbox in standard version enables motors to be connected directly to the precision right angle gearbox. The outputshaft can be solid, hollow, switched or multiplied to give up to five outputs.

Technical data

SERVO BEVEL GEARBOX FS2
Gearbox size 8 gearbox sizes available
Ratios 1:1 - 1,25:1 - 1:1,25 - 1,5:1 - 1:1,5 - 1,75:1
2:1 - 2,5:1
3:1 - 3,5:1
4:1 - 5:1 - 6:1
Alternative ratios on request
Max. torque Up to 2.836 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash ≤ 6'
Reduced backlash ≤ 3'
Output shaft diameter From 12 to 75mm depending on the gearbox size
Motor shaft diameter From 8 to 60mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

Also available with input shaft and other ratios, see spiral bevel gearbox catalogue (see standard version).

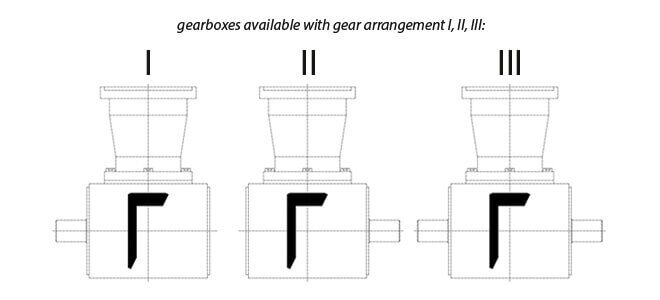

Available with different gear arrangements

For further gear arrangements, please consult our ServoFoxx® gearbox catalogue and spiral bevel gearbox catalogue.
