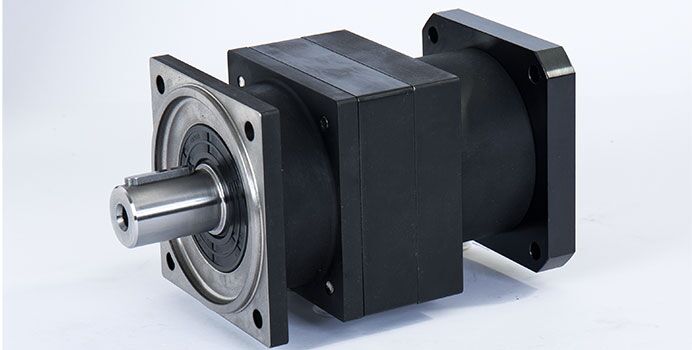

Planetary gearbox standard version PL2 FS

TANDLER description: ServoFoxx® planetary gearbox series PL2 FS

Planetary gearbox standard version

This extremely low-backlash planetary gearbox has been developed specifically for use with highly dynamic servo motors. With two, three or even four gear stages, ratios up to 10,000:1 can be achieved.

Technical data

Gearbox size 7 gearbox sizes available
Ratios One gear stage: 3:1 - 4:1 - 5:1 - 6:1 - 7:1 - 8:1 - 9:1 - 10: 1
Two gear stages: almost every ratio up to 100:1 is possible
Three gear stages: almost every ratio up to 1.000:1 is possible
Four gear stages: almost every ratio up to 10.000:1 is possible
Max. torque Up to 1.750 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash One stage 6' - Two stages 8'
Reduced backlash One stage 3' - Two stages 4'

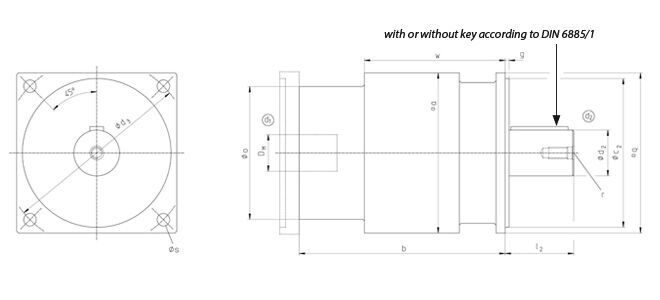

Output shaft diameter From 19 to 55mm depending on the gearbox size
Motor shaft diameter From 8 to 42mm depending on the gearbox size

Also available with input shafts, see ServoFoxx®  planetary gearbox PL2.

Also available with input shafts
