P

Cost-optimized planetary gearbox P

TANDLER description: ServoFoxx® planetary gearbox series P (single and double stage)

Product Finder Series P

Cost-optimized planetary gearbox P

The planetary gearbox series P 10 to P 60 (single stage) and P 12 to P 62 (double stage) are a new development from TANDLER, completely independent of the existing ServoFoxx® planetary gearbox PL2 FS or PL2.

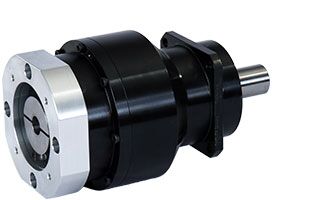

Planetary gearbox P single stage

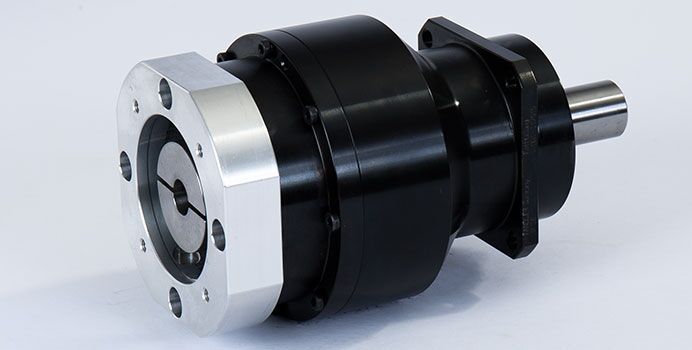

Planetary gearbox P single stage

Planetary bevel gearbox P double stage

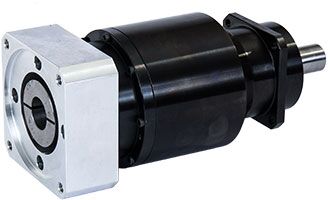

Planetary gearbox P double stage



Product Finder Series P

Please select the required transmission and enter the nominal torque to be transmitted.

Six sizes are available, with ratios from 3:1 to 100:1.

Backlash is less than 6 arc minutes. The high accuracy Tandler manufacturing process ensures that the highest quality transmissions are supplied.

All P range gearboxes are grease lubricated for life. External surfaces of the gearbox casing, including the aluminium components are corrosion resistant.

Technical data

PLANETARY GEARBOX P
Gearbox size 6 gearbox sizes available
Ratios One stage: 3:1 – 4:1 – 5:1 – 7:1 – 10:1
Two stages: 12:1 – 15:1 – 16:1 – 20:1 – 21:1 – 25:1 – 28:1
30:1 – 35:1 – 40:1 – 49:1 – 50:1 – 70:1 – 100:1
Max. torque Up to 2.890 Nm
Max. speed Up to 3.400 min-1
Higher speeds on request
Backlash One stage:≤ 6′ Two stages: ≤ 8′
Reduced backlash One stage:≤ 3′ Two stages: ≤ 4′
Output shaft diameter From 16 to 75mm depending on the gearbox size (key optional)
Motor shaft diameter From 9 to 55mm depending on the gearbox size

Coaxial input and output

Caution: With every enquiry or order, please provide the motor data (eg torque, speed and frame size).

Please ask!
