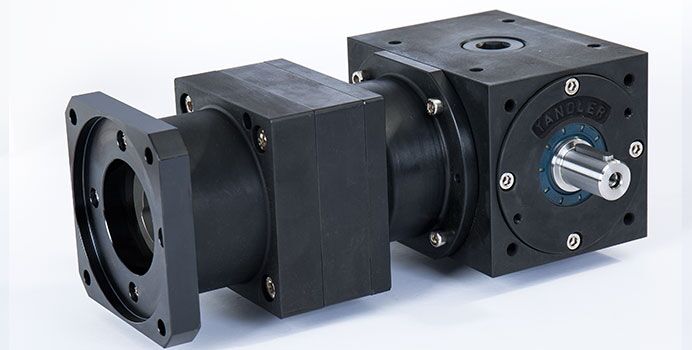

Planetary bevel gearbox standard version PSK2 FS

TANDLER description: ServoFoxx® planetary spiral bevel gearbox series PSK2 FS

Planetary bevel gearbox standard version

Right angle drives offering the output options of spiral bevel gears with even higher ratios. Input side planetary stage in four sizes, suitable for any motor desired. Outside spiral bevel stage for powerful options such as hollow shaft, shrink disk, straight sided splined bore and internal involute spline. Gearbox sizes can be combined and optimised for maximum output torque capacity.

Technical data

PLANETARY BEVEL GEARBOX PSK2 FS
Gearbox size 9 gearbox sizes available
Ratios Up to 60:1
Higher ratios on request
Max. torque Up to 2.050 Nm
Higher torques on request
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash ≤ 8'
Reduced backlash ≤ 4'
Output shaft diameter From 14 to 65mm depending on the gearbox size
Motor shaft diameter From 8 to 55mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

Please enquire for alternative and higher double stage ratios.
