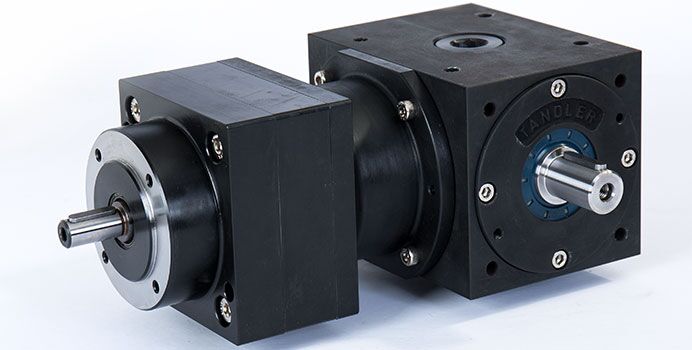

Planetary bevel gearbox with input shaft PSK2

TANDLER description: ServoFoxx® planetary spiral bevel gearbox series PSK2

Planetary bevel gearbox with input shaft

ServoFoxx® gearboxes with an input shaft are also suitable for conventional mechanical drives, without servo technology.

Owing to the feasibility of high ratios the PSK2 gearbox is especially useful for an emergency manual drive, with the hand wheel simply mounted to the input shaft. Additionally, of course, the use of the gearbox in motor-driven applications without any restrictions is possible.

Technical data

Gearbox size 9 gearbox sizes available
Ratios Up to 60:1
Higher double stage ratios on request
Max. torque Up to 2.050 Nm
Higher torques on request
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash ≤ 8'
Reduced backlash ≤ 4'
Output shaft diameter From 14 to 65mm depending on the gearbox size
Input shaft diameter From 11 to 24mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available
