PSK2 FS HW | HWS | HWK | HWZ

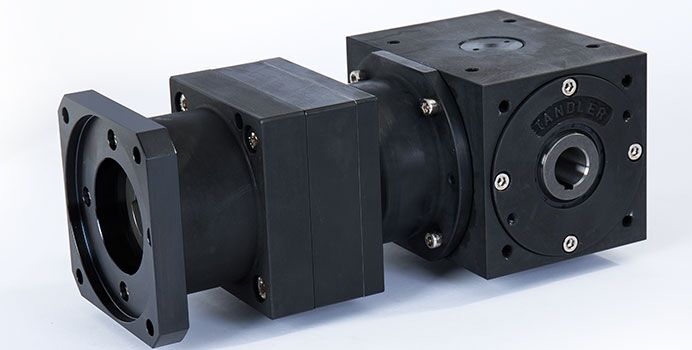

Planetary bevel gearbox with hollow shaft

TANDLER description: ServoFoxx® planetary spiral bevel gearbox series PSK2 FS HW | HWS | HWK | HWZ

Planetary bevel gearbox with hollow shaft

Our combination gears comprising planetary gears and downstream bevel gears can be delivered with various types of hollow shafts on the output side.

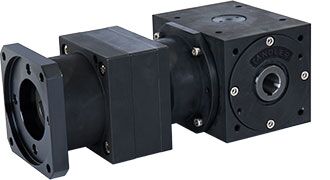

Planetary bevel gearbox with hollow shaft and keyway

HW - Keyway

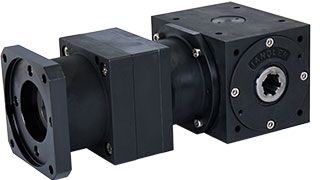

Planetary bevel gearbox with hollow shaft and straight sided, splined bore

HWK - Straight sided, splined bore

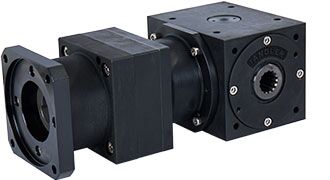

Planetary bevel gearbox with hollow shaft and internal involute spline

HWZ - Internal involute spline

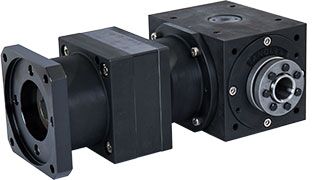

Planetary bevel gearbox with hollow shaft and shrink disc

HWS - Shrink disc

Hollow shaft options

Technical data

PLANETARY BEVEL GEARBOX PSK2 FS HW
Gearbox size 9 gearbox sizes available
Ratios Up to 60:1
Higher ratios on request
Max. torque Up to 2.050 Nm
Higher torques on request
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash ≤ 8'
Reduced backlash ≤ 4'
Bore diameter hollow shaft From 14 to 55mm depending on the gearbox size
Motor shaft diameter From 8 to 55mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

Also available for gearboxes with input shaft as PSK2 HW, HWS, HWK or HWZ.
