Hypoid gearbox with robot flange

HYP FS2 RF

TANDLER description: ServoFoxx® hypoid gearbox HYP FS2 RF

Hypoid gearbox with robot flange

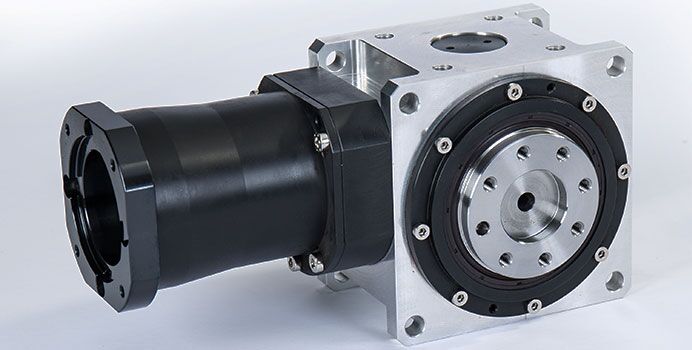

With the RF-design, tools for industrial robot applications in accordance with EN ISO 9409-1 can be mounted on to the robot flange. Here we can offer the ServoFoxx® hypoid as an alternative to conventional planetary gearboxes, because the right angle output saves important installation space.

Technical data

HYPOID GEARBOX HYP FS2 RF
Gearbox size 8 gearbox sizes available
Ratios 5:1 - 8:1 - 10:1 - 12:1 - 15:1
Alternative ratios on request
Max. torque Up to 2.118 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash ≤ 6'
Reduced backlash ≤ 3'
Output flange diameter From 50 to 160mm depending on the gearbox size
Motor shaft diameter From 8 to 55mm depending on the gearbox size
