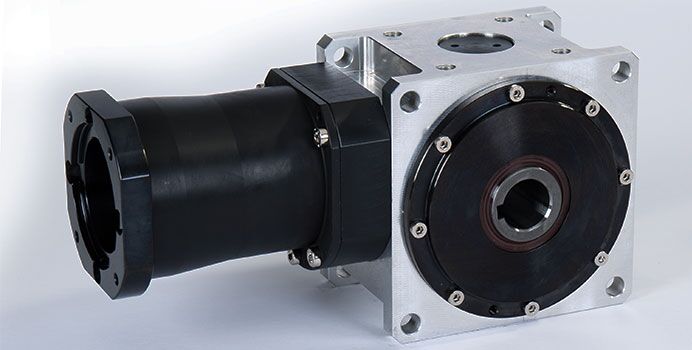

Hypoid gearbox with hollow shaft or with hollow shaft and shrink disc

HYP FS2 HW | HWS

TANDLER description: ServoFoxx hypoid gearbox HYP FS2 HW | HWS

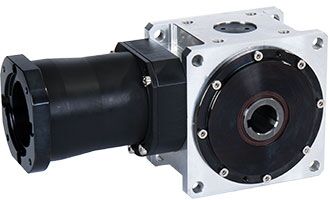

Variant HYP FS2 HW

In the HW version, the output side is configured as a hardened and ground hollow shaft with keyway. So a simple connection via shaft and key is feasible. The high surface hardness of the shaft prevents premature fretting of the positive connection.

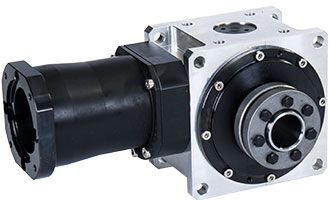

Hypoid gearbox with hollow shaft and shrink disc

Variant HYP FS2 HWS

The HWS design, with a ground hollow shaft and shrink disc has a strong, positive connection. This is completely free of play and resistant to shock or reversing loads.

Technical data

HYPOID GEARBOX HYP FS2 HW \| HWS
Gearbox size	8 gearbox sizes available
Ratios	5:1 - 8:1 - 10:1 - 12:1 - 15:1 Alternative ratios on request
Max. torque	Up to 2.118 Nm
Max. speed	Up to 3.000 min^-1 Higher speeds on request
Backlash	≤ 6'
Reduced backlash	≤ 3'
Output shaft diameter	From 16 to 70mm (HW) and from 20 to 70mm (HWS) depending on the gearbox size
Motor shaft diameter	From 8 to 55mm depending on the gearbox size
