HYP FS2

Hypoid gearbox standard version

TANDLER description: ServoFoxx® hypoid gearbox HYP FS2

Hypoid gearbox standard version

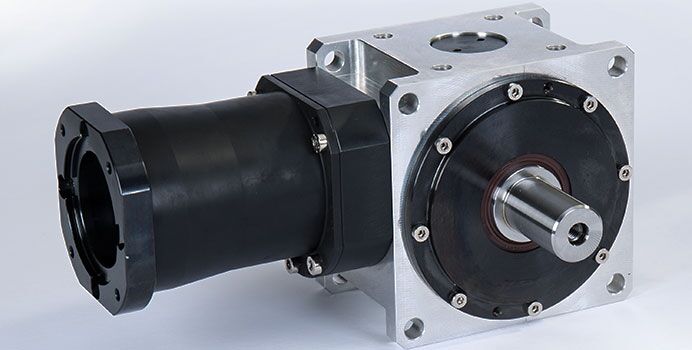

The new TANDLER hypoid gearbox is supplied with a plain output shaft as standard. A key on the output shaft can be supplied as a no-cost option. Due to the single-stage design, (ratios up to 15:1), very low backlash and transmission error is achievable. On the ServoFoxx® hypoid the input is via a flange and two-part coupling - suitable for virtually any servo motor.

Technical data

HYPOID GEARBOX HYP FS2
Gearbox size 8 gearbox sizes available
Ratios 5:1 - 8:1 - 10:1 - 12:1 - 15:1
Alternative ratios on request
Max. torque Up to 2.118 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash ≤ 6'
Reduced backlash ≤ 3'
Output shaft diameter From 20 to 70mm depending on the gearbox size
Motor shaft diameter From 8 to 55mm depending on the gearbox size

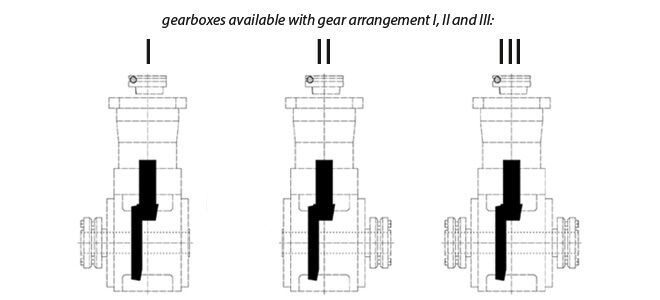

Sketch - Hypoid gearbox standard version
