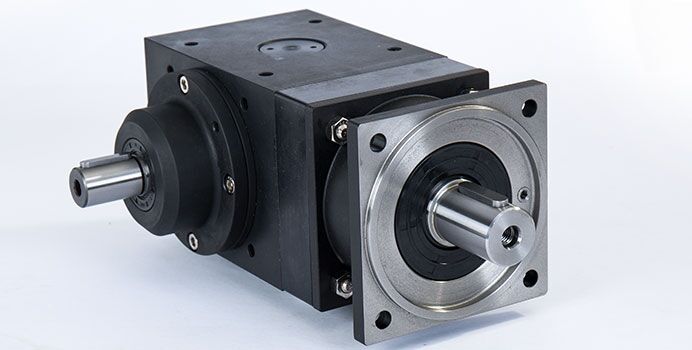

Bevel planetary gearbox with input shaft SKP2

TANDLER description: ServoFoxx® spiral bevel planetary gearbox SKP2

Bevel planetary gearbox with input shaft

The bevel planetary gearbox is also available as a version with an input shaft. This gearbox is suitable for non-servo applications where right angle drives with high ratios and high torques are required. Therefore, the SKP2 is an extension of our standard spiral bevel gearbox range (see also our spiral bevel gear catalogue).

Technical data

BEVEL PLANETARY GEARBOX SKP2
Gearbox size 4 gearbox sizes available
Ratios Up to 60:1
Higher ratios on request
Max. torque Up to 1.600 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash ≤ 8'
Reduced backlash ≤ 4'
Output shaft diameter From 19 to 55mm depending on the gearbox size
Input shaft diameter From 9 to 42mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available
