Bevel planetary gearbox standard version SKP2 FS2

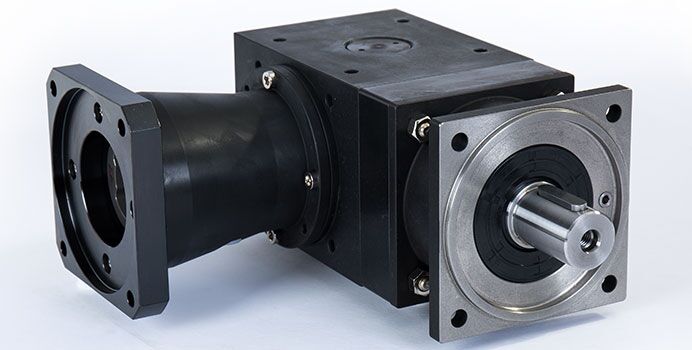

TANDLER description: ServoFoxx® spiral bevel planetary gearbox SKP2 FS2

Bevel planetary gearbox standard version

Integrates the range of a spiral bevel and a planetary gearbox to provide the maximum torque capacity of the planetary gearbox at output shaft d2.

Technical data

BEVEL PLANETARY GEARBOX SKP2 FS2
Gearbox size 4 gearbox sizes available
Ratios Up to 60:1
Higher ratios on request
Max. torque Up to 1.600 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash ≤ 8'
Reduced backlash ≤ 4'
Output shaft diameter From 19 to 55mm depending on the gearbox size
Motor shaft diameter From 8 to 55mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

Also available with input shaft, see ServoFoxx® bevel planetary gearbox SKP2.

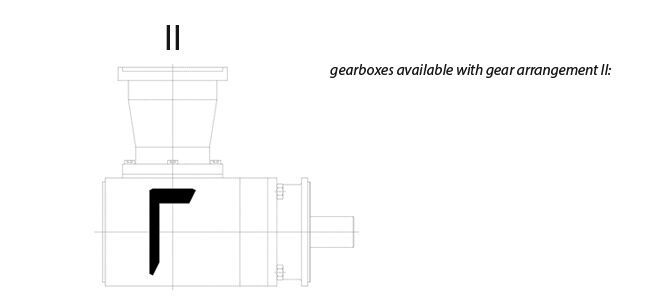

Available with gear arrangement II

For further gear arrangements, please consult our ServoFoxx® catalogue and our Bevel gearbox catalogue zu Rate.
