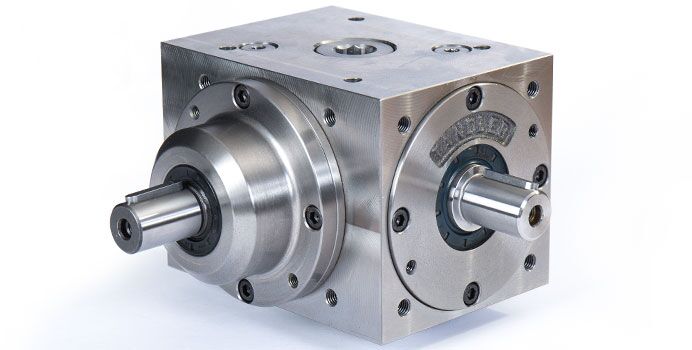

Bevel gearbox standard version

TANDLER description: spiral bevel gearbox series Standard

Bevel gearbox standard version

TANDLER bevel gearboxes are highly efficient, have a low backlash and work with high gear ratio precision. They have low noise levels, are not susceptible to shocks, and are highly resilient and space-saving. Depending on gear ratio and design, our gearboxes can also be supplied directly from stock.

Technical data

Gearbox size 9 gearbox sizes available
Ratios 1:1 - 1,25:1 - 1:1,25 - 1,5:1 - 1:1,5 - 1,75:1
2:1 - 1:2 - 2,5:1
3:1 - 3,5:1
4:1 - 5:1 - 6:1
Alternative ratios on request
Max. torque Up to 10.000 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash Up to a maximum of 6'-7' depending on the gearbox size
Reduced backlash Up to a maximum of 4'
Diameter of the shaft From 9 to 90mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

Depending on ratio and version our gearboxes are also available ex stock.
