Switching bevel gearbox

TANDLER description: Switching spiral bevel gearbox serie S

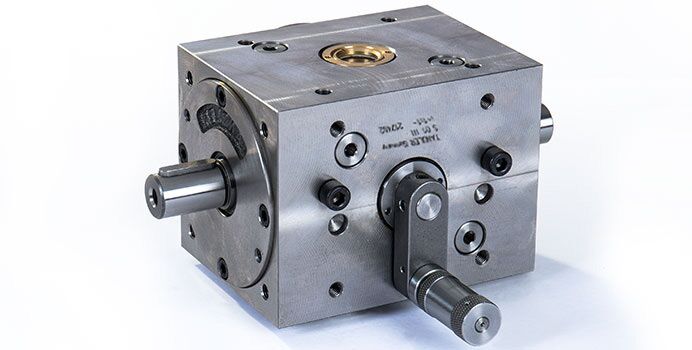

Switching bevel gearbox S

The S serie has the capability to reverse the direction of the output shaft relative to the input shaft.

Technical data

SWITCHING BEVEL GEARBOX S
Gearbox size 7 gearbox sizes available
Ratios 1:1 - 1,25:1 - 1,5:1 - 1,75:1
2:1
3:1
Alternative ratios on request
Max. torque Up to 4.400 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash Up to a maximum of 9'-10' depending on the gearbox size
Reduced backlash Up to a maximum of 6'-8'
Diameter of the shaft From 22 to 90mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

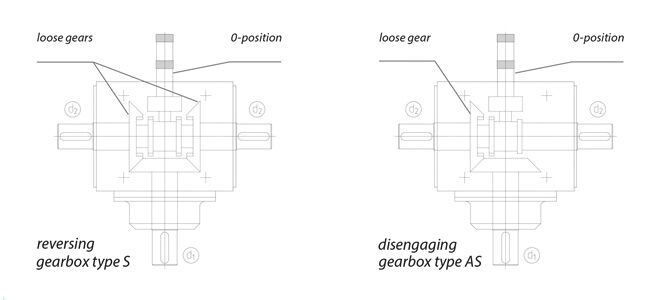

Switching & disengaging gearbox - sketch
