Stainless steel gearbox

TANDLER description: spiral bevel gearboxes in stainless steel VA

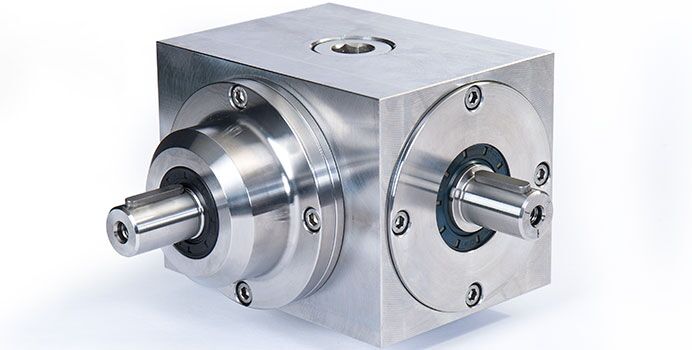

Stainless steel bevel gearbox VA

Stainless steel gearboxes are used wherever the highest requirements for hygiene and corrosion protection exist, for example in humid environments and especially when exposed to seawater. In some sectors of the food industry their use is now indispensable due to hygiene regulations. In this case, the ability to flawlessly clean the machine components must also be guaranteed. Besides a durable material, smooth surfaces are therefore also necessary.

As standard, our stainless steel gearboxes have only one screw plug per housing face, no oil sight glass and no mounting holes. Mounting holes are machined as per customer requirements in the specified face. Of course, we only use top-quality, food-grade stainless steel for the housing components.

For this purpose, the gearboxes are filled at the factory with food-grade, synthetic oil in accordance with NSF-H1. The gearboxes are also available with other lubricants upon request.

Technical data

STAINLESS STEEL GEARBOX VA
Gearbox size 5 gearbox sizes available
Ratios 1:1 - 2:1 - 3:1
Alternative ratios on request
Max. torque Up to 420 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash Up to a maximum of 6'-7' depending on the gearbox size
Reduced backlash Up to a maximum of 4'
Diameter of the shaft From 9 to 42mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

We manufacture stainless steel gearboxes according to your individual requirements

In addition to our standard stainless steel gearboxes, almost all other versions of our bevel gearboxes are also available in stainless steel. For example, different output options such as a hollow shaft, reinforced shaft or additional output shafts can be implemented. We can also offer additional gear ratios.

It is possible to optimally customise the gearboxes in our stainless steel gearbox range by adding additional options, such as finishes or cooling devices. For further information, see: Spiral bevel gearboxes-catalogue.

Please feel free to contact us. With our experienced staff and 100% vertically integrated production range, we are known as specialists in the manufacture of high quality gears. You get the perfect solution for your task from a single provider. Find out for yourself, we would be happy to advise you about your individual requirements.
