Reversing bevel gearbox

TANDLER description: reversing spiral bevel gearbox series W

Reversing bevel gearbox

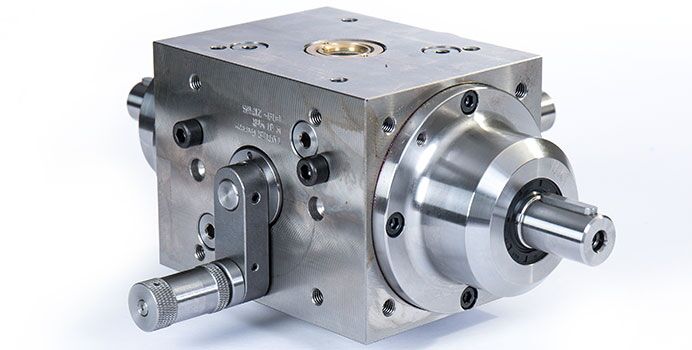

With a constant direction of input shaft d1, the direction of rotation of the through shaft (d2 loose gear) can be switched to rotate in the same or opposite directions. The gearbox can be supplied either with or without shaft d1.

Different switching options are available: In addition to the conventional manual operation of the switch lever, we can offer pneumatic, hydraulic, electric and electromechanical switching options.

Technical data

REVERSING BEVEL GEARBOX W
Gearbox size 5 gearbox sizes available
Ratios 1:1 - 2:1
Alternative ratios on request
Max. torque Up to 5.000 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash Up to a maximum of 9'-10' depending on the gearbox size
Reduced backlash Up to a maximum of 6'-8'
Diameter of the shaft From 22 to 60mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

Position of the switch lever according to our data sheet S 507.

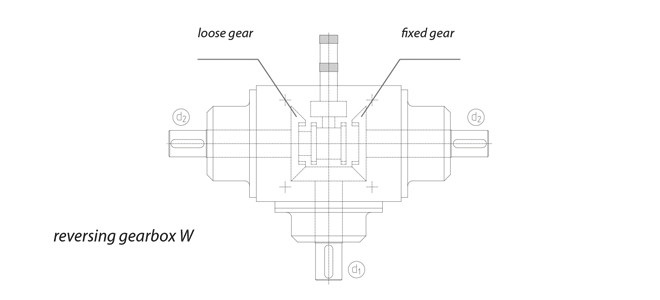

Position of the switch lever - Illustration
