Bevel gearbox with reinforced shaft d2

TANDLER description: spiral bevel gearbox series WV

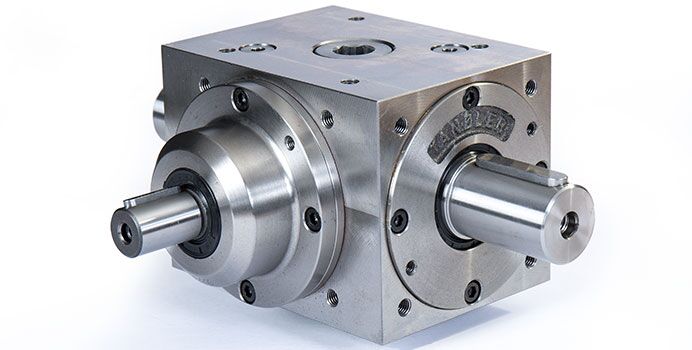

Bevel gearbox with reinforced shaft WV

A bevel gearbox with reinforced shaft is commonly used in line-shaft drive applications where only a proportion of the full torque is taken off the main drive shaft at various intervals. Because the full torque is not transmitted through the gears, smaller more cost effective gearboxes can be utilised.

Technical data

BEVEL GEARBOX WITH REINFORCED SHAFT WV
Gearbox size 8 gearbox sizes available
Ratios 1:1 - 1,25:1 - 1,5:1 - 1,75:1
2:1 - 2,5:1
3:1 - 3,5:1
4:1 - 5:1 - 6:1
Alternative ratios on request
Max. torque Up to 10.000 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash Up to a maximum of 6'-7' depending on the gearbox size
Reduced backlash Up to a maximum of 4'
Diameter of the shaft From 9 to 100mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available
