Bevel gearbox with hollow shaft

TANDLER description: spiral bevel gearbox series HW | HWS | HWK | HWZ

Bevel gearbox with hollow shaft HW

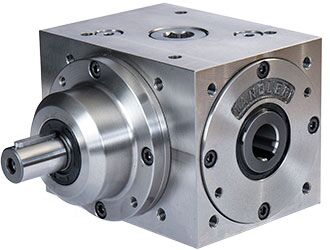

A spiral bevel gearbox with hollow shaft is ideal for direct connection of drive shafts and for the insertion of special connecting shafts. By eliminating couplings, they provide a compact solution to torque transmission in small spaces. Different versions with keyway, straight sided splines, involute splines and shrink disc are available.

Technical data

BEVEL GEARBOX WITH HOLLOW SHAFT
Gearbox size 9 gearbox sizes available
Ratios 1:1 - 1,25:1 - 1,5:1 - 1,75:1
2:1 - 2,5:1
3:1 - 3,5:1
4:1 - 5:1 - 6:1
Alternative ratios on request
Max. torque Up to 10.000 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash Up to a maximum of 6'-7' depending on the gearbox size
Reduced backlash Up to a maximum of 4'
Diameter of the shaft or of the hole From 9 to 90mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

Different versions with keyway, straight sided splined bore, internal involute spline or shrink disc available.

Bevel gearbox with hollow shaft and keyway

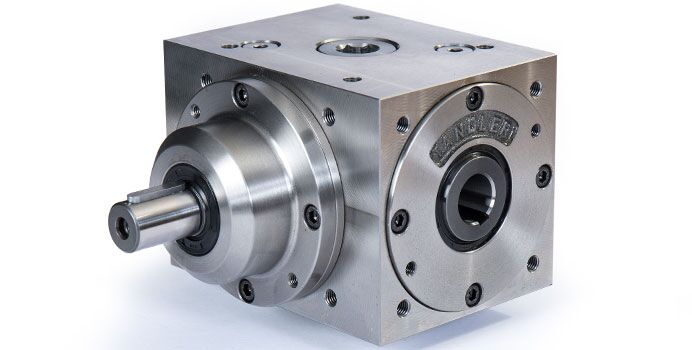

HW - With keaway

Bevel gearbox with hollow shaft and straight sided, splined bore

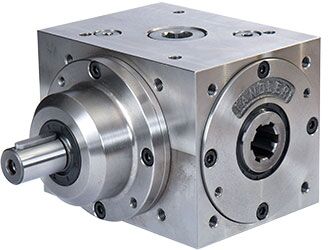

HWK - With straight sided, splined bore

Bevel gearbox with hollow shaft and internal involute spline

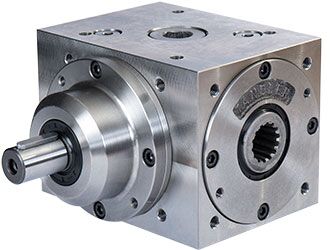

HWZ - With internal involute spline

Bevel gearbox with hollow shaft and shrink disc

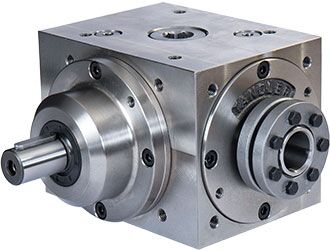

HWS - With shrink disc

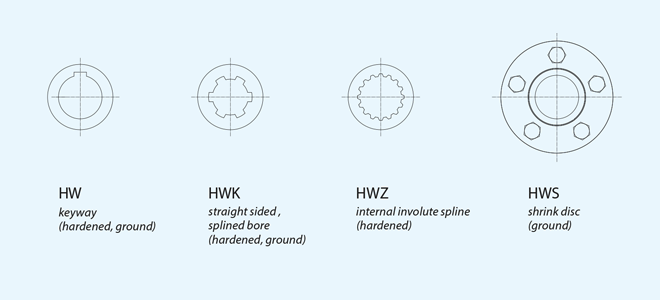

Hollow shaft versions

Overview - Bevel gearboxes

Bevel gearbox standard version
Bevel gearbox with hollow shaft
Bevel gearbox with reinforced shaft
Bevel gearbox with hollow pinion
Bevel gearbox with flange
Switching gearbox
Disengaging bevel gearbox
Reversing bevel gearbox
Stainless steel gearbox
High performance gearbox

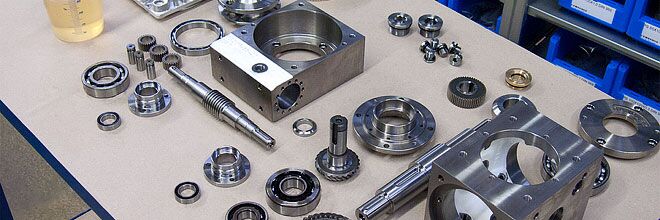

Consulting & customer support
Contact us and get a free consultation!

Do you have any questions about our products and services? Would like to discuss your specific application?

Free consultation

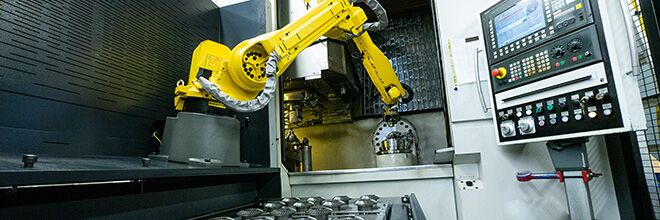

Gearing - Klingelnberg G27 with robot
