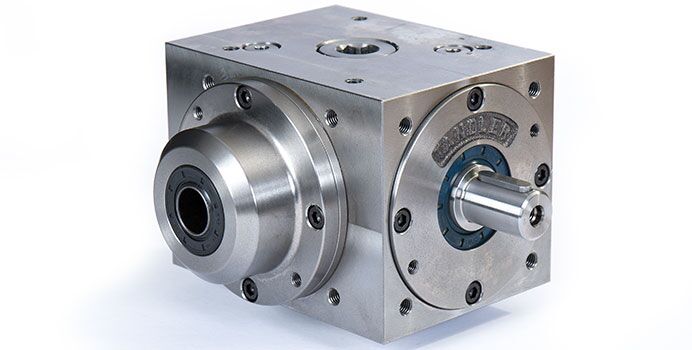

Bevel gearbox with hollow pinion

TANDLER description: spiral bevel gearbox series HRZ

Bevel gearbox with hollow pinion

A bevel gearbox with hollow pinion allows direct connection to drive shafts with splines to DIN 5482. No coupling is needed.

Technical data

BEVEL GEARBOX WITH HOLLOW PINION HRZ
Gearbox size 6 gearbox sizes available
Ratios 1:1 - 1,25:1 - 1:1,25 - 1,5:1 - 1:1,5 - 1,75:1
2:1 - 1:2
Alternative ratios on request
Max. torque Up to 10.000 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash Up to a maximum of 6'-7' depending on the gearbox size
Reduced backlash Up to a maximum of 4'
Diameter of the shaft From 16 to 75mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

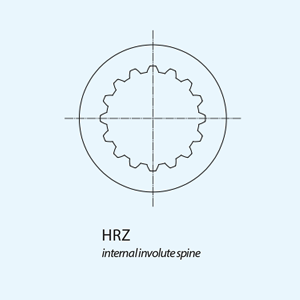

Bevel gearbox with hollow pinion and internal involute spine
