HL HW | HL HWS - High performance gearbox with hollow shaft or with hollow shaft with shrink disc

TANDLER description: PowerMaster gearbox series HL HW | HWS

High performance gearbox with hollow shaft

Spiral bevel gearboxes with hollow shafts are ideal for direct connection of drive shafts and for the insertion of special connecting shafts. By eliminating couplings, they provide a compact solution to torque transmission in small spaces. Different versions with keyway, straight sided splines, involute splines and shrink disc are available.

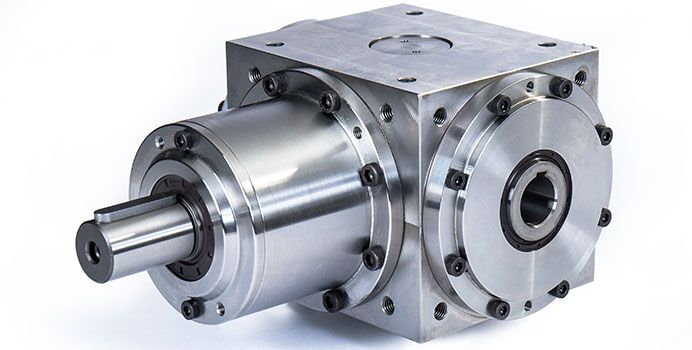

High performance gearbox with hollow shaft


High performance gearbox with hollow shaft and shrink disc


Technical data

Gearbox size 5 gearbox sizes available
Ratios 1:1 - 2:1 - 3:1
Alternative ratios on request
Max. torque Up to 2.000 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash Up to a maximum of 6'-7' depending on the gearbox size
Reduced backlash Up to a maximum of 4'
Diameter of the shaft or of the hole From 14 to 52mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available
