Bevel gearbox with flange

TANDLER description: spiral bevel gearbox series F

Bevel gearbox with flange

Bevel gearboxes with various flange connections can be coupled to virtually all standard three-phase motors and many servo motors. These designs feature a hollow pinion with keyway for accepting the drive journal. A servo gear should be selected for highly dynamic servo applications.

Foe every gearbox size there are multiple flange sizes available.

Technical data

Gearbox size 6 gearbox sizes available
Ratios 1:1 - 1,25:1 - 1:1,25 - 1,5:1 - 1:1,5 - 1,75:1
2:1 - 2,5:1
3:1 - 3,5:1
4:1 - 5:1 - 6:1
Alternative ratios on request
Max. torque Up to 2.000 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash Up to a maximum of 6'-7' depending on the gearbox size
Reduced backlash Up to a maximum of 4'
Flange size From 105 to 400mm depending on the gearbox size
Diameter of the shaft From 14 to 55mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

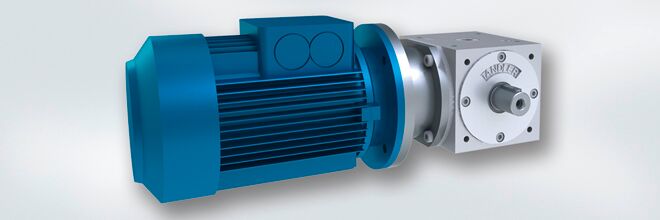

Flange with motor

example: gearbox assembled with flange mounted motor

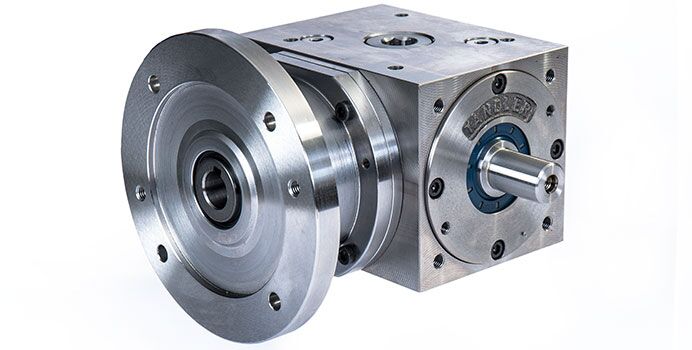

Servo bevel gearbox with flange standard version

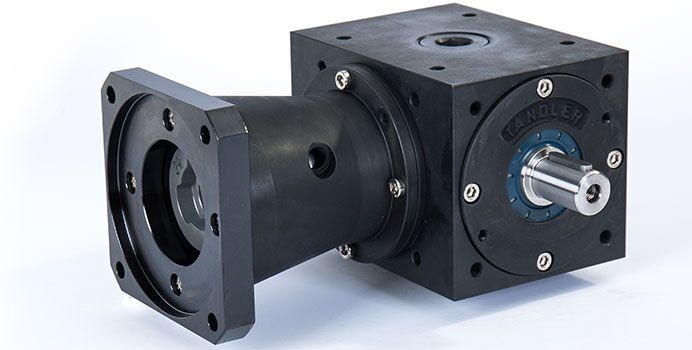

FS2 spiral bevel gearbox for servo applications

For servo applications, we recommend our FS2 spiral bevel gearbox from the ServoFoxx® range. In contrast to the flanged gearboxes series F, the input is fitted with a 2 piece bellows coupling, they are lubricated for life and have a corrosion resistant finish.

Additionally, the FS2 series, like all gearboxes from the ServoFoxx® range, interchangeable flanges and couplings cater for almost all servo and standard motors, with and without keyed motor shafts.

Further information on the FS2 spiral bevel gearboxes.
