Disengaging bevel gearbox

TANDLER description: Disengaging spiral bevel gearbox serie AS

Disengaging bevel gearbox

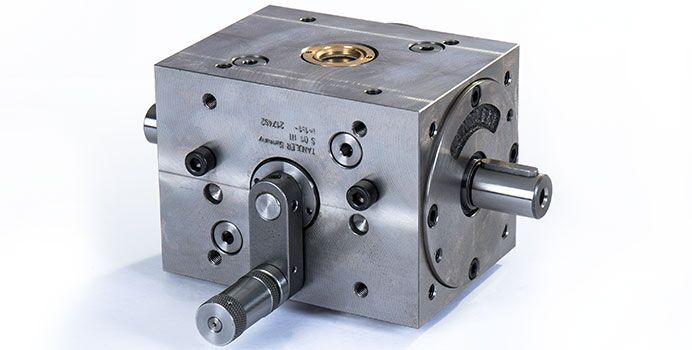

A spiral bevel gearbox where the output shaft can be disengaged from the input shaft (series AS)

Technical data

Gearbox size 7 gearbox sizes available
Ratios 1:1 - 2:1 - 3:1
Alternative ratios on request
Max. torque Up to 5.000 Nm
Max. speed Up to 3.000 min-1
Higher speeds on request
Backlash Up to a maximum of 9'-10' depending on the gearbox size
Reduced backlash Up to a maximum of 6'-8'
Diameter of the shaft From 22 to 90mm depending on the gearbox size
Gear arrangement Lots of differents gear arrangements available

Position of the switch lever according to our data sheet S 507.

Sketch - Disengaging bevel gearbox
